切屑处理系统
切屑处理系统事业部门介绍
切屑处理系统事业是以切屑输送机制作技术为基础，通过切屑和切削液自动化处理用的中央集成式切屑处理系统和冷却液系统，制作和供应工厂自动化用的Line设备。我们承诺以25年来作为专业的传统工具机外围设备的制作企业积累的技术和经验、人才为基础提供从工程及特性出发的最优化的用户为主的系统。
通过减少工程的运营人力，具有节约费用和生产力提高效果的切屑处理自动化系统。

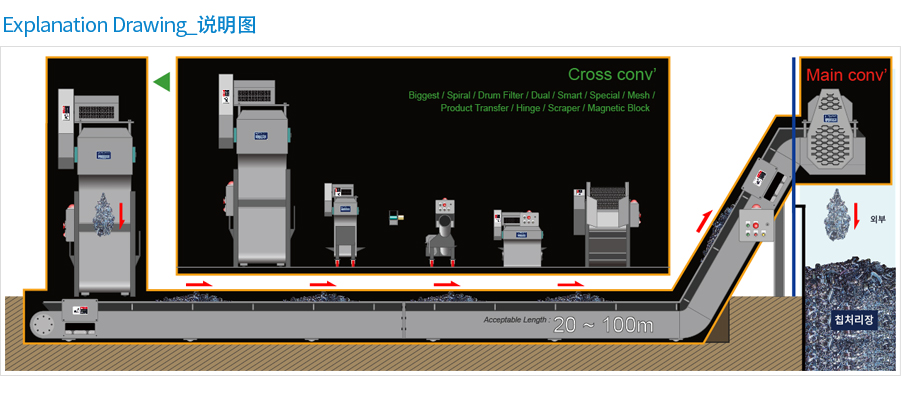

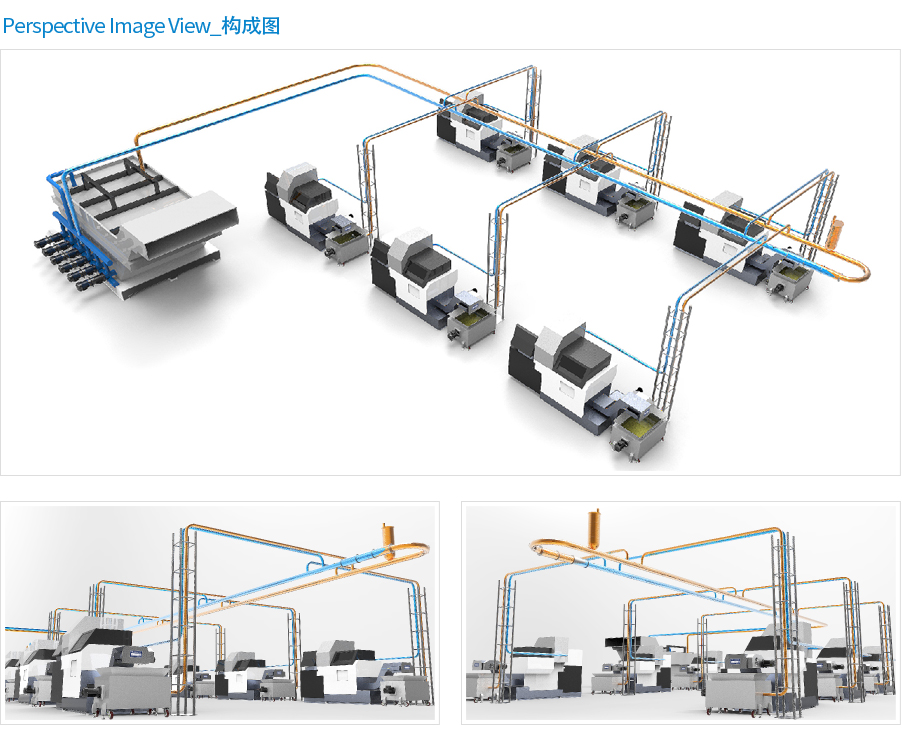

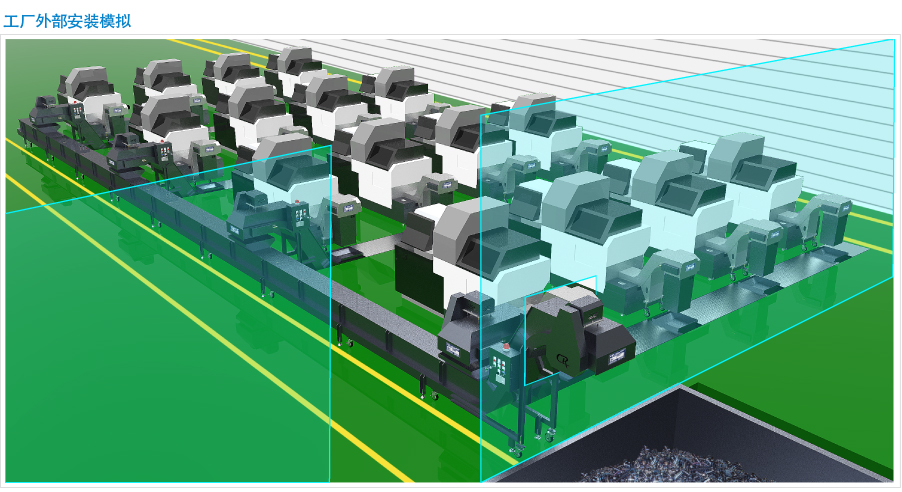

用小型输送机把各工具机排放的切屑移动到主输送机，无需通过人员的投入把切削移送到工厂外部的系统。此外，把输送机安装在地面下，可有效使用作业空间，防止切削液泄露，从而预防作业环境的污染，能够保持舒适的环境。

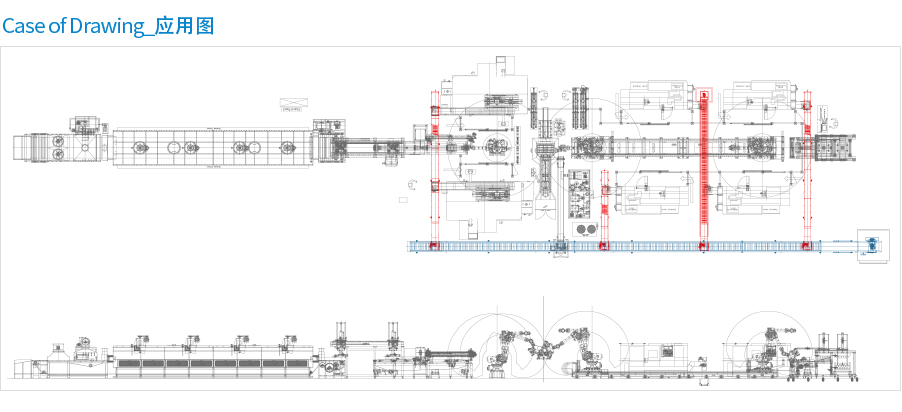

通过适合贵司工厂环境和生产流程的定制化Line设计，改善作业环境，提高产品的质量，致力于提高顾客的满意度。
小规模切削液处理装置使用Paper Filter, Drum Filter, Magnet Separator等，大规模的切削液处理使用Centralized Filtering System更为有效。大容量切削液处理装置的使用目的在于通过节约运营费(设备费及运行经费、保全管理费、切粉处理供水)和改善环境(防治切粉扩散、延长切削液的寿命、减少设备的安装面积)提供最佳的稳定的质量。根据排出方式分为埋设型、泵型、复合型，可根据贵司的环境进行选择和安装。

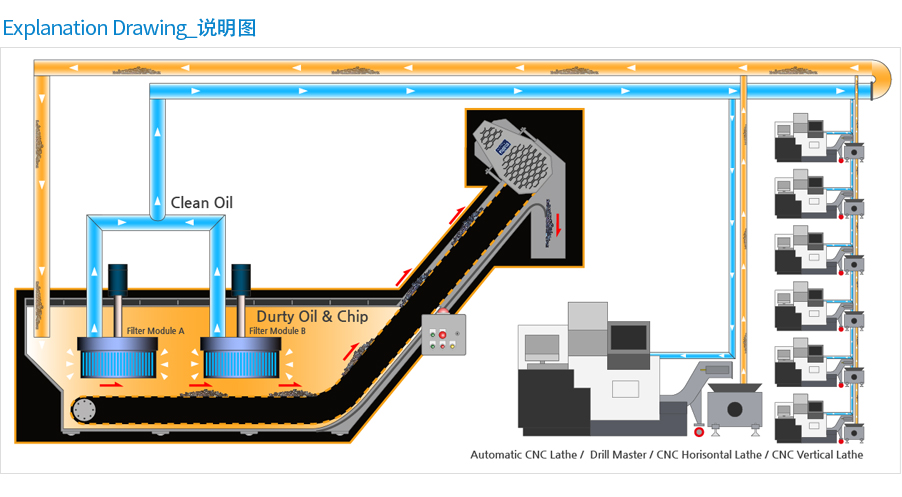

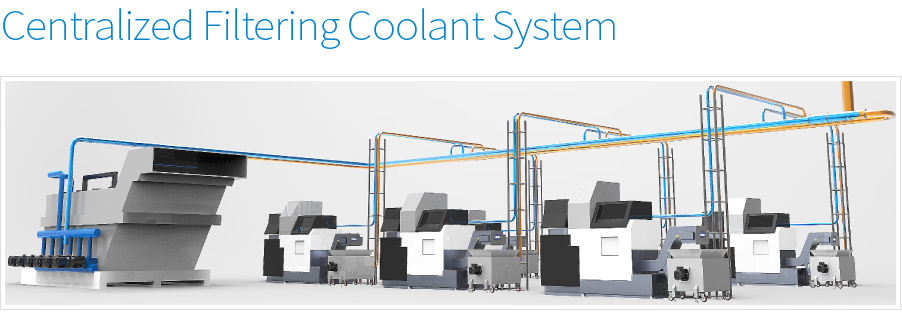

Centralized Filtering Coolant System have proven their efficiency time and over again due to their reliability, the flexible installation options,
as well as their low operating costs for filtering the emulsion or the coolant. In most cases, they don`t need any precipitation of the chips in
the fluid
and
are
therefore particularly well suited for the integration in a chip disposal system and easy to retrofit as expansion or upgrade of the filtering capacity.
The configuration of the vacuum filter offers a higher percentage purity without the use of filter auxiliary consumables.
This does not only drastically lower the operating costs but also makes the system less sensitive to any cracks or holes in the filter mat.
therefore particularly well suited for the integration in a chip disposal system and easy to retrofit as expansion or upgrade of the filtering capacity.
The configuration of the vacuum filter offers a higher percentage purity without the use of filter auxiliary consumables.
This does not only drastically lower the operating costs but also makes the system less sensitive to any cracks or holes in the filter mat.
